Professional Finnish Saunas

LE FINLANDESI^®

Professional
Finnish Saunas

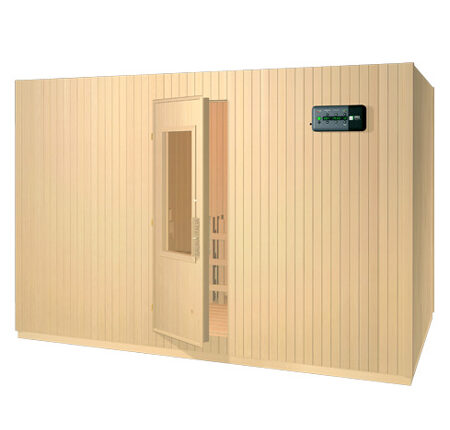

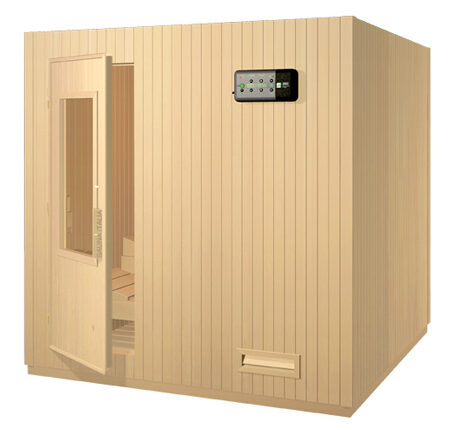

A line of saunas for professional collective use: Spas, Hotels, Sports Centres, Physical and Beauty Therapy Centres. The most sturdy structure, the high reliability of electronic and electromechanical parts, the exclusive user-friendly control functions (large push-button for remote calls, a removable key, an electronic multiple sand-glass), the absolute hygiene of the interior which is treated with special non-toxic, transparent and mat varnishes, the care for details, the complete outfit and the exclusive design, make LE FINLANDESI absolutely unique on the sauna market for professional use, meeting all possible demands.

LE FINLANDESI are mass prefabricated.

Manufacture: Hemlock or Swedish Pine, with finishing corners, and "Le Finlandesi" door.
Control panels: LOGICA or EUROPA
Heaters: SINTESI
Interior fitting: Polished

(The manufacturer reserves the right to make modification to products to improve )

SAUNA ITALIA^®differs substantially in all these elements. It has a LOGICA control panel, uses SINTESI stoves and is built with a particular and exclusive structure.

The frames of each wall are built entirely in laminated wood, a material produced with long and complex processes that make it non-deformable under the strongest thermal stresses.

SINTESI stoves manufactured by Sauna Italia^®

Developed on the basis of a long production experience, the SINTESI heaters have been designed and built with original and specific features. The three chambers the SINTESI heaters are made up of, enable them to work only by convection, which makes it possible to heat up in a very short time with a very low consumption while keeping the back wall and the outer bulkhead at ambient temperature. The top flaps, featuring a parabolic shape, convey the heat within the heater in a uniform manner. A steel tray for containing the lava stones is located on top of the heater. Heating is generated by a set of water-tight armoured heating elements. The SINTESI heaters are built in conformity with the strictest international safety standards.

Heater "SINTESI 21"

2100W - 230V
Heating elements: 1 x 2100W
Dimensions: LxPxA cm. 34,5x18,5x52
Weight: kg. 13,500

Heater "SINTESI 28"

2800W - 230V
Heating elements: 2 x 1400W
Dimensions: LxPxA cm. 52,5x21x52
Weight: kg. 19,500

Heater "SINTESI 42"

4200W - 230V/400V
Heating elements: 3 x 1400W
Dimensions: LxPxA cm. 52,5x21x52
Weight: kg. 20,500

Heater "SINTESI 54"

5400W - 230V/400V
Heating elements: 3 x 1800W
Dimensions: LxPxA cm. 58x29,5x52
Weight: kg. 25,500

Heater "SINTESI 63"

6300W - 230V/400V
Heating elements: 3 x 2100W
Dimensions: LxPxA cm. 58x29,5x52
Weight: kg. 27,500

MANUFACTURING CHARACTERISTICS

LOGICA

Microprocessor-controlled control panel. Made up of separate vertical sections for the various functions (general controls, Temperature control, time set, electronic hourglass).

Very user-friendly: just press the upper buttons to increase values, and the lower ones to decrease them. Its unique and original functions meet every possibile requirement and are at the same time extremely easy to use.

EUROPA

Electro-mechanical control panel complete with all essential functions and safety devices.

Inside temperature controlling thermostat.
Reset button after stop at maximum safety temperature (125°C).
Time switch
Heater ON indicator.
Internal light luminous switch (24 V).
Power on indicator.

STRUCTURE

The walls are insulated, then hot pressed (95° temperature and 400 tons of pressure) and create a single body between frame and covering; they are subsequently squared and the stops are obtained during squaring and finally calibrated and pre-assembled. Since the door is already assembled and registered and the electrical system (stove, control panel, internal light) is already completely assembled and housed in the front wall, the assembly of an ITALIA SAUNA takes just a few minutes. SAUNA ITALIA^® can be dismantled and reassembled elsewhere at any time.

CARATTERISTICHE COSTRUTTIVE

LOGICA

Le Finlandesi®

Quadro elettronico di comando e controllo gestito da microprocessore. Suddiviso in sezioni verticali distinte per funzioni (comandi generali, controllo della temperatura, programmazione oraria, clessidra elettronica). L'uso è semplicissimo: per impostare le funzioni è sufficiente premere i tasti in alto per aumentare i valori, i tasti in basso per diminuirli. Le sue funzioni esclusive ed assolutamente innovative rispondono ad ogni possibile esigenza nella massima facilità d'uso.

EUROPA

Le Finlandesi®

Quadro elettromeccanico di comando e controllo completo nelle funzioni essenziali e nei dispositivi di sicurezza.

Termostato di controllo temperatura interna
Pulsante di riarmo arresto massima temperatura di sicurezza (125 °C)
Interruttore temporizzato
Indicatore luminoso accensione stufa
Interruttore luminoso luce interna (24 V)
Indicatore luminoso presenza rete

STRUTTURA

Le Finlandesi®

Le pareti sono coibentate, poi pressate a caldo (95° di temperatura e 400 tonnellate di pressione) e creano un corpo unico tra telaio e rivestimento; sono successivamente squadrate ed in squadratura vengono ricavate le battute ed infine calibrate e preassemblate. Essendo la porta già montata e registrata e l'impianto elettrico (stufa, quadro comandi, luce interna) già completamente montato ed alloggiato nella parete frontale, l'assemblaggio di una SAUNA ITALIA richiede pochi minuti. SAUNA ITALIA può essere in ogni momento smontata e rimontata altrove.
