IL BOSCO
Different sauna models that make up
the Linea Verde and the Serie Europa
IL BOSCO
Different sauna models
that make up the Green
Line and the Europa Series
FINNISH SAUNA
SAUNA ITALIA® 's IL BOSCO includes 10 different models of Finnish-style saunas making up: LINEA VERDE and SERIE EUROPA.

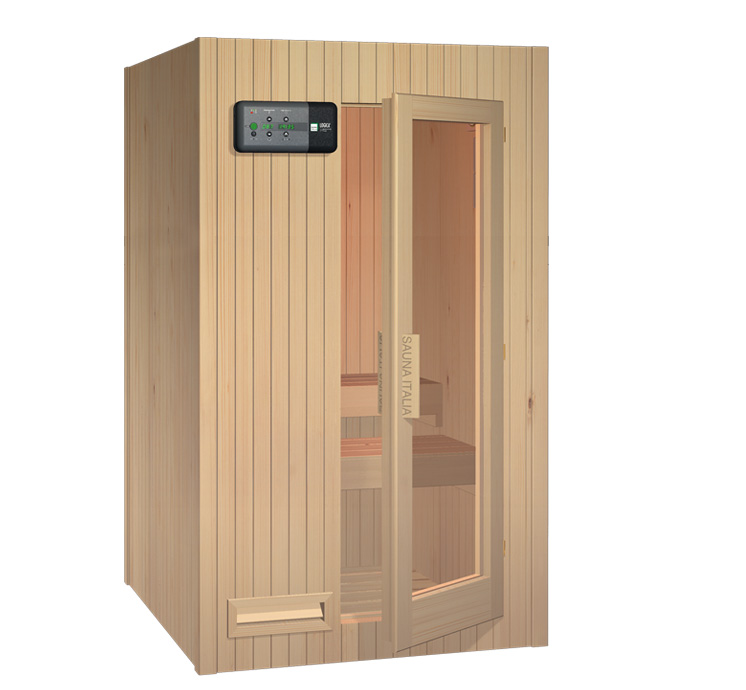

LINEA VERDE
is the home-line of Finnish-style saunas which SAUNA ITALIA® dedicates to the most refined and demanding clients. Finished off with the utmost care for details, this line features a glazing all over the door as well as the exclusive functions of the LOGICA control panel. The glazing all over the door prevents all sense of claustrophobia and the view may wander through the outside environment. The LOGICA control panel functions provide LINEA VERDE with a series of unique conveniences.
LINEA VERDE is equipped with every useful accessory: sand-glass, thermometer-hygrometer, water tub, ladle, stones, head-rest. LINEA VERDE is built in Hemlock Canadian or top quality Swedish Fir. The inside furnishing (benches, head-rest, heater-protecting grid and floor) could be realized in untreated wood or finely varnished with opaque finish.
SERIE EUROPA
is the line of Finnish-style saunas which combines the traditional quality of SAUNA ITALIA® with competitive prices. Featuring an elegant line, complete essential functions and accessories. The door rabbets and the outer corner finishings are obtained directly during the squaring process.
SERIE EUROPA is built in top quality Swedish Fir and is mass-prefabricated
SINTESI stoves manufactured by Sauna Italia®
Developed on the basis of a long production experience, the SINTESI heaters have been designed and built with original and specific features. The three chambers the SINTESI heaters are made up of, enable them to work only by convection, which makes it possible to heat up in a very short time with a very low consumption while keeping the back wall and the outer bulkhead at ambient temperature. The top flaps, featuring a parabolic shape, convey the heat within the heater in a uniform manner. A steel tray for containing the lava stones is located on top of the heater. Heating is generated by a set of water-tight armoured heating elements. The SINTESI heaters are built in conformity with the strictest international safety standards.
Heater "SINTESI 21"
- 2100W - 230V
- Heating elements: 1 x 2100W
- Dimensions: LxPxA cm. 34,5x18,5x52
- Weight: kg. 13,500
Heater "SINTESI 28"
- 2800W - 230V
- Heating elements: 2 x 1400W
- Dimensions: LxPxA cm. 52,5x21x52
- Weight: kg. 19,500
Heater "SINTESI 42"
- 4200W - 230V/400V
- Heating elements: 3 x 1400W
- Dimensions: LxPxA cm. 52,5x21x52
- Weight: kg. 20,500
Heater "SINTESI 54"
- 5400W - 230V/400V
- Heating elements: 3 x 1800W
- Dimensions: LxPxA cm. 58x29,5x52
- Weight: kg. 25,500
Heater "SINTESI 63"
- 6300W - 230V/400V
- Heating elements: 3 x 2100W
- Dimensions: LxPxA cm. 58x29,5x52
- Weight: kg. 27,500
MANUFACTURING CHARACTERISTICS

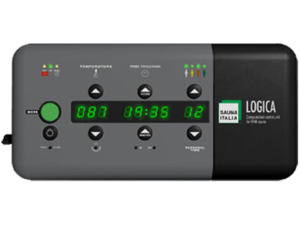

LOGICA
Microprocessor-controlled control panel. Made up of separate vertical sections for the various functions (general controls, Temperature control, time set, electronic hourglass).
Very user-friendly: just press the upper buttons to increase values, and the lower ones to decrease them. Its unique and original functions meet every possibile requirement and are at the same time extremely easy to use.

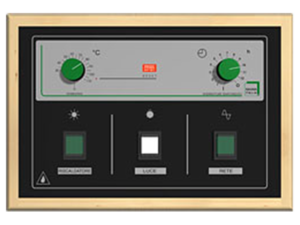

EUROPA
Electro-mechanical control panel complete with all essential functions and safety devices.
- Inside temperature controlling thermostat.
- Reset button after stop at maximum safety temperature (125°C).
- Time switch
- Heater ON indicator.
- Internal light luminous switch (24 V).
- Power on indicator.
STRUCTURE
The walls are insulated, then hot pressed (95° temperature and 400 tons of pressure) and create a single body between frame and covering; they are subsequently squared and the stops are obtained during squaring and finally calibrated and pre-assembled. Since the door is already assembled and registered and the electrical system (stove, control panel, internal light) is already completely assembled and housed in the front wall, the assembly of an ITALIA SAUNA takes just a few minutes. SAUNA ITALIA® can be dismantled and reassembled elsewhere at any time.
CARATTERISTICHE COSTRUTTIVE
LOGICA
Quadro elettronico di comando e controllo gestito da microprocessore. Suddiviso in sezioni verticali distinte per funzioni (comandi generali, controllo della temperatura, programmazione oraria, clessidra elettronica). L'uso è semplicissimo: per impostare le funzioni è sufficiente premere i tasti in alto per aumentare i valori, i tasti in basso per diminuirli. Le sue funzioni esclusive ed assolutamente innovative rispondono ad ogni possibile esigenza nella massima facilità d'uso.
EUROPA
Quadro elettromeccanico di comando e controllo completo nelle funzioni essenziali e nei dispositivi di sicurezza.
- Termostato di controllo temperatura interna
- Pulsante di riarmo arresto massima temperatura di sicurezza (125 °C)
- Interruttore temporizzato
- Indicatore luminoso accensione stufa
- Interruttore luminoso luce interna (24 V)
- Indicatore luminoso presenza rete
STRUTTURA
Le pareti sono coibentate, poi pressate a caldo (95° di temperatura e 400 tonnellate di pressione) e creano un corpo unico tra telaio e rivestimento; sono successivamente squadrate ed in squadratura vengono ricavate le battute ed infine calibrate e preassemblate. Essendo la porta già montata e registrata e l'impianto elettrico (stufa, quadro comandi, luce interna) già completamente montato ed alloggiato nella parete frontale, l'assemblaggio di una SAUNA ITALIA richiede pochi minuti. SAUNA ITALIA può essere in ogni momento smontata e rimontata altrove.
Mod. Maxima
High capacity sauna: 4 lying people - 8 to 10 seated people. Recommended for rooms where there are no space problems and where one wants to create a comfortable and prestigious atmosphere. 4 benches, a large central aisle, grids which cover the entire floor surface and can be easily removed to clean the underlying floor.
Panel: Logica
Heater: Sintesi 54, Sintesi 63
Dimensions: LxPxA: 302x202x205 cm
Mod. Optima
Sauna with optimum dimensions. Allows a comfortable lying position for 3 people or the sitting position for 6 or 7 people. 3 tiered benches. Grids which cover the entire floor surface and can be easily removed to clean the underlying floor.
Panel: Logica
Heater: Sintesi 54
Dimensions: LxPxA: 202x202x205 cm
Mod. Astra
Spacious Finnish-style sauna which allows the lying position for 2 people or a comfortable sitting position for 5 people. It features 2 tiered benches. Sturdy flooring grids can be easily removed to clean the underlying floor. The power consumption is very low as compared with the roominess of the sauna.
Panel: Logica
Heater: Sintesi 42
Dimensions: LxPxA: 202x152x200 cm
Mod. Marzia
In a very limited space, it allows the lying position for 2 people or a sitting position for 4 people. It features 2 tiered benches. The floor consists of sturdy grids which can be easily removed to clean the underlying floor.
Panel: Logica
Heater: Sintesi 42
Dimensions: LxPxA: 202x127x200 cm
Mod. Miria
Spacious Finnish-style sauna which allows a comfortable half-lying position for 2 people or a comfortable sitting position for 3 people. It features 2 tiered benches. Suitable for homes having sufficient space for a comfortable sauna but a reduced power capacity.
Panel: Logica
Heater: Sintesi 28
Dimensions: LxPxA: 148x152x200 cm
Mod. Selena
Finnish-style sauna taking up very little space. It may comfortably accommodate 2 persons. It features 2 tiered benches. Its reduced dimensions as well as the very low power consumption make it suitable for medium and small-sized houses too. The sturdy flooring grids can be easily removed to clean the underlying floor.
Panel: Logica
Heater: Sintesi 21
Dimensions: LxPxA: 122x122x200 cm
Mod. E 200/150
Spacious Finnish-style sauna which allows the lying position for 2 people or a comfortable sitting position for 5 people. Two tiered benches, a spacious entry, sturdy flooring grids which cover the entire floor and can be easily removed to clean the underlying floor.
Panel: Europa
Heater: Sintesi 42
Dimensions: LxPxA: 200x150x200 cm
Mod. E 200/130
Finnish-style sauna which allows the lying position for 2 people or a sitting position for 4 people in a very limited space. Two tiered benches, sturdy flooring grids which cover the entire floor and can be easily removed to clean the underlying floor.
Panel: Europa
Heater: Sintesi 42
Dimensions: LxPxA: 200x125x200 cm
Mod. E 150
Spacious Finnishstyle sauna which allows a comfortable half-lying position for 2 people or a comfortable sitting position for 3 people. The power consumption is low as compared to the capacity of the sauna. Two tiered benches, sturdy flooring grids which cover the entire floor and can be easily removed to clean the underlying floor.
Panel: Europa
Heater: Sintesi 28
Dimensions: LxPxA: 146x150x200 cm
Mod. E 120
Finnish-style sauna taking up very little space. It may comfortably accommodate 2 persons. Two tiered benches, turdy flooring grids which cover the entire floor and can be easily removed to clean the underlying floor.
Panel: Europa
Heater: Sintesi 21
Dimensions: LxPxA: 120x120x200 cm
